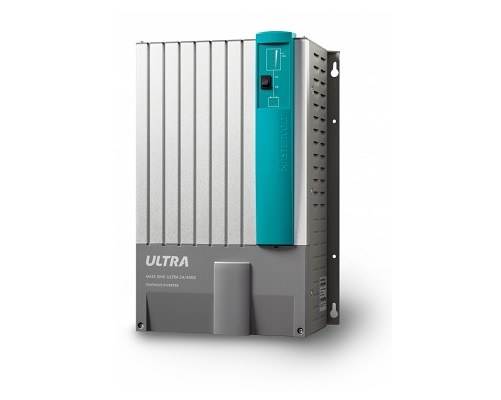

Mass Sine Ultra 24/4000 Mastervolt convertisseur sinusoïdal 230V 24V 4000W
Le prix initial était : 3 442.80€.2 910.04€Le prix actuel est : 2 910.04€. TTC
Mastervolt Mass Sine Ultra 24V 4000W converter.
* Pour les articles en stock via Chronopost
Mastervolt Mass Sine Ultra 24 V
Mastervolt offers a complete range of inverters from 300 W to 35 kW with the AC Master, Mass Sine and Mass Sine Ultra models. The AC Master is ideal for medium and small applications, while the Mass Sine and the new Mass Sine Ultra are dedicated to large systems and professional use. Mastervolt offers 230 V/50 Hz as well as 120 V/60 Hz (US voltage) inverters.
HF technology eliminates snoring
With the use of high-frequency switching technology, efficiency is a thing of the past, and noisy inverters are a thing of the past. Mastervolt inverters are also small and lightweight for easy installation.
High peak power during startup
The Mastervolt sine wave inverter can provide up to 200% capacity to equipment that needs more power at start-up.
Efficient use of batteries
Battery life is preserved thanks to high operating efficiency and the economy mode automatically triggered in the absence of consumption.
Simple and secure connection
The converters are equipped with robust connectors. Internal terminals for the larger models and sockets for the smaller models.
MasterBus compatible
Each Mass Sine converter can be easily connected to the MasterBus network with a single cable and connector. You can also choose centralized, local, or remote configuration and control of your system.
New Mass Sine Ultra
Our new Mass Sine Ultra models expand the Mass Sine range. The latest V6 technology increases efficiency and allows multiple modules to operate in parallel as well as a three-phase configuration.
Specifications
General specifications |
||
| Output voltage | 230 V (± 2%) – 50/60 Hz adjustable (± 0.005%) | |
| Output wave | pure sine | |
| Nominal battery voltage. | 24 V | |
| Cont. power at 40°C, cos phi 1 | 4000 W | |
| Peak power | 7000 W | |
| AC connection | internal | |
| Yield | = 92% % | |
| Parallel use | yes, up to 10 devices | |
| Three-phase configuration | yes, up to 3×3 | |
| Display/indicator | LED display | |
| Min. battery capacity. | > 350 Ah | |
| Dimensions, HxWxD | 472 x 318 x 178 mm 18.6 x 12.5 x 7.0 inches |
|
| Weight | 15 kg 33.1 lbs |
|
| Standards | CE, ABYC | |
Technical specifications |
||
| Technology | HF V6 switching | |
| Low battery voltage, shutdown at | 19-22 V, dynamic window V | |
| Low battery voltage, starts at | 24 V, ± 0.5 V | |
| High battery voltage, shutdown at | 32 V, ± 0.5 V | |
| High battery voltage, starts at | 29 V, ± 0.5 V | |
| Max. ripple on DC (battery) | 5% RMS | |
| Input current (nom. load) | 200 A | |
| No-load power consumption (ON mode) | 660 mA – 16 W | |
| No-load power consumption (energy saving mode) | 300 mA – 7 W | |
| DC fuse min. (slow blow) | 250 A | |
| Min. cable section. | 70 mm² | |
| Typical harmonic distortion | < 1% | |
| Cos phi | all permitted power factors | |
| Switching system | The Masterswitch and Systemswitch can be connected to all converters | |
| Temperature range (room temp) | -25°C to 60°C, decreasing > 40°C -13 to 140°F |
|
| Cooling | natural/forced | |
| Protection index | IP23 | |
| Protections | overheating, overload, short circuits, high/low battery voltage | |
| MasterBus compatible | Yes | |
| Poids | 15 kg |
|---|---|
| Marque | MasterVolt |
